LCD Screen Electronic Automatic Water Timer Sprinkler Controller

$79.31$158.61 (-50%)

SKU: 4001235929979 Category:



Warm Tips:

1. Please make sure a rubber ring is well set before connecting the quick connector to top tap connector to prevent water leakage.

4. The Product itself does not generate pressure, but the pressure of tap water is used; tap water or a pressurized water source ensures a normal effluent from the irrigation timer.

5. Mesh filter prevents dirt particles, prolonging life of the Product. Clean filter regularly and replace if worn.

6. When the power is low, please replace the batteries in time to avoid the interruption of the normal operation; when replacing the batteries, please make sure that the battery compartment is dry.


Production Dimension: 12.5 x 6.5 x 20.5cm/(4.92 x 2.56 x 8.07in

Watering Duration: 1s-59s; 1min-300min

Watering Frequency: 1h-23h; 1 day-15 days

Manual Watering Duration: 1-240min

Power Supply: 2*AA Batteries (Not Included)

Rubber Rings: 3mm and 5mm respectively


Sprinkler Timer

Sprinkler Timer

Sprinkler Timer

Sprinkler Timer

How to Install?

1. Take out the timer from the package carefully and there are 2 rubber rings, a top tap connector adapter, a quick connector, a mesh filter, a user manual and a installation guidance card inside.

2. 2*AA batteries are required (not included) and place them into the battery compartment.

3. Set the mesh filter and a rubber ring into the top rotating orange connector, hold the timer and screw the connector to hose thread(3/4”) tightly.

Child Lock Mode

Long press 3 s to activate or deactivate.Useful child lock mode prevent unintended trigger and water waste

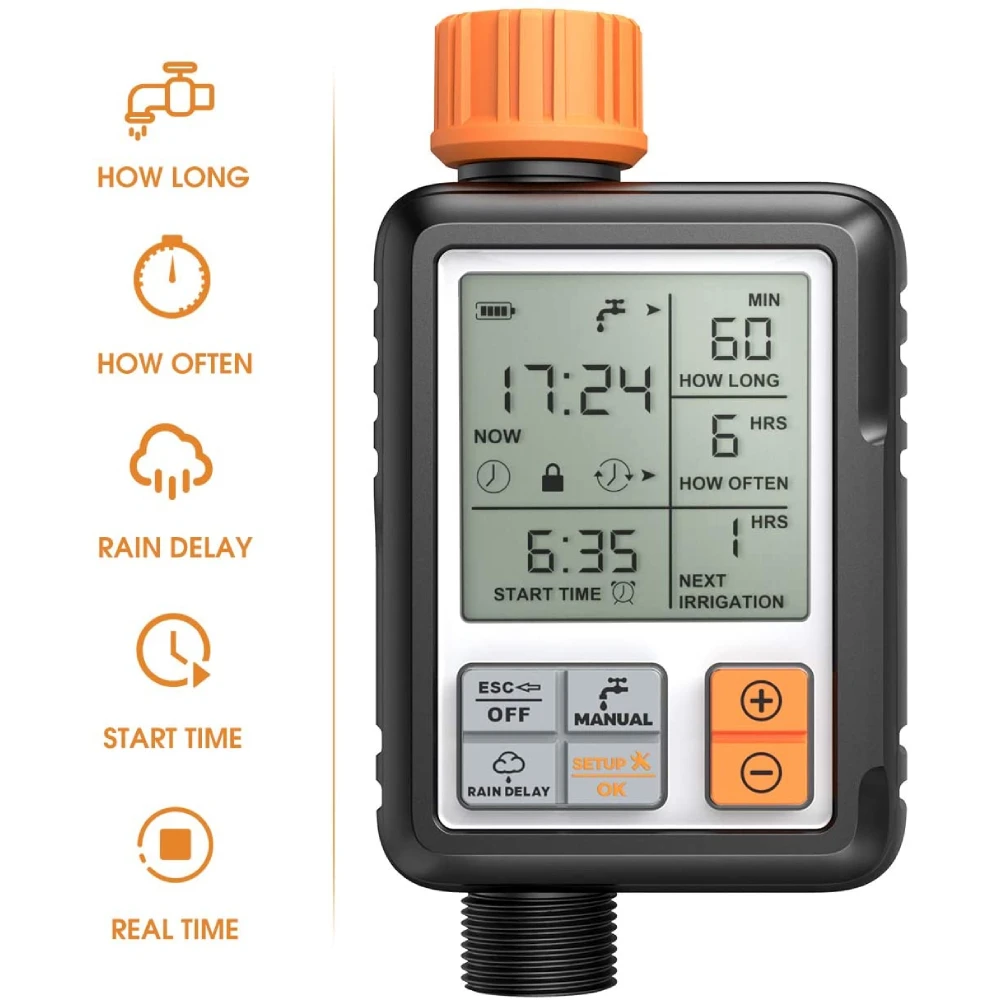

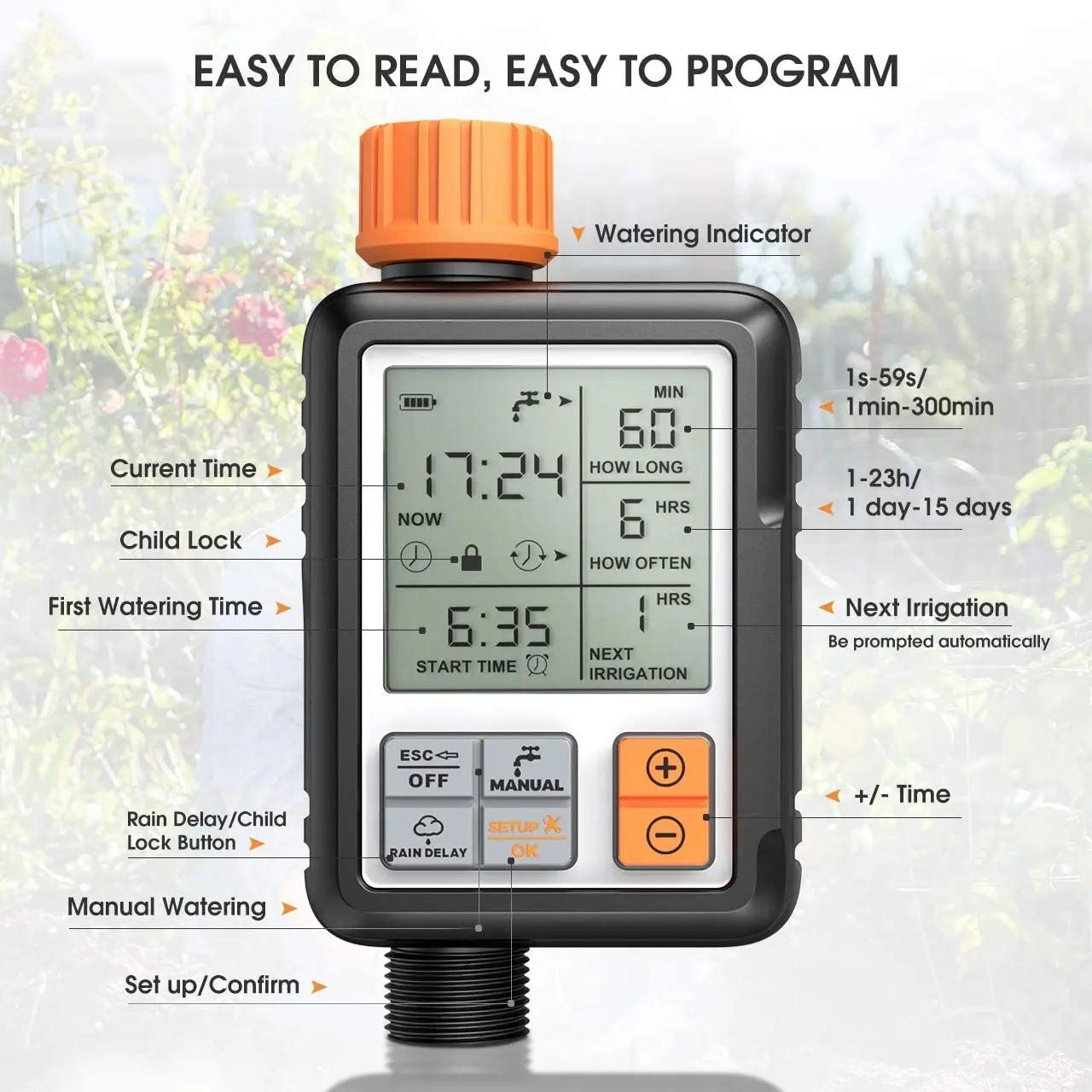

3″ Large Screen, Large Button Easy to Read and Program

All-in-one extra large screen, make everything clear at a glance. The screen will automatically turn off if not operated after 30 seconds.


Wide Range of Adjustment


  • Watering Duration: 1s-59s; 1min-300min
  • Watering Frequency: 1h-23h; 1 day-15 days


Sprinkler Timer

Sprinkler Timer

Sprinkler Timer

Sprinkler Timer

Timed Watering

Conserves water well! Get it programmed and no more water the plants excessively.



Power Saving

If the button operation is not performed within 30 seconds, the screen will auto off and the product will enter the sleep state, which can save much power.


Rain Delay

If it’s in rain, you can press this button to pause your programmed setting for an interval to avoid over-watering and water waste

Manual Watering

The manual button allows for instant and flexible watering without interrupting your set irrigation program.(1-240min)
